Aprilia/Triumph/Yamaha Swingarm Spools – SCP07 DBK

DBK Aprilia/Triumph/Yamaha Swingarm Spools: Precision Garage Hardware

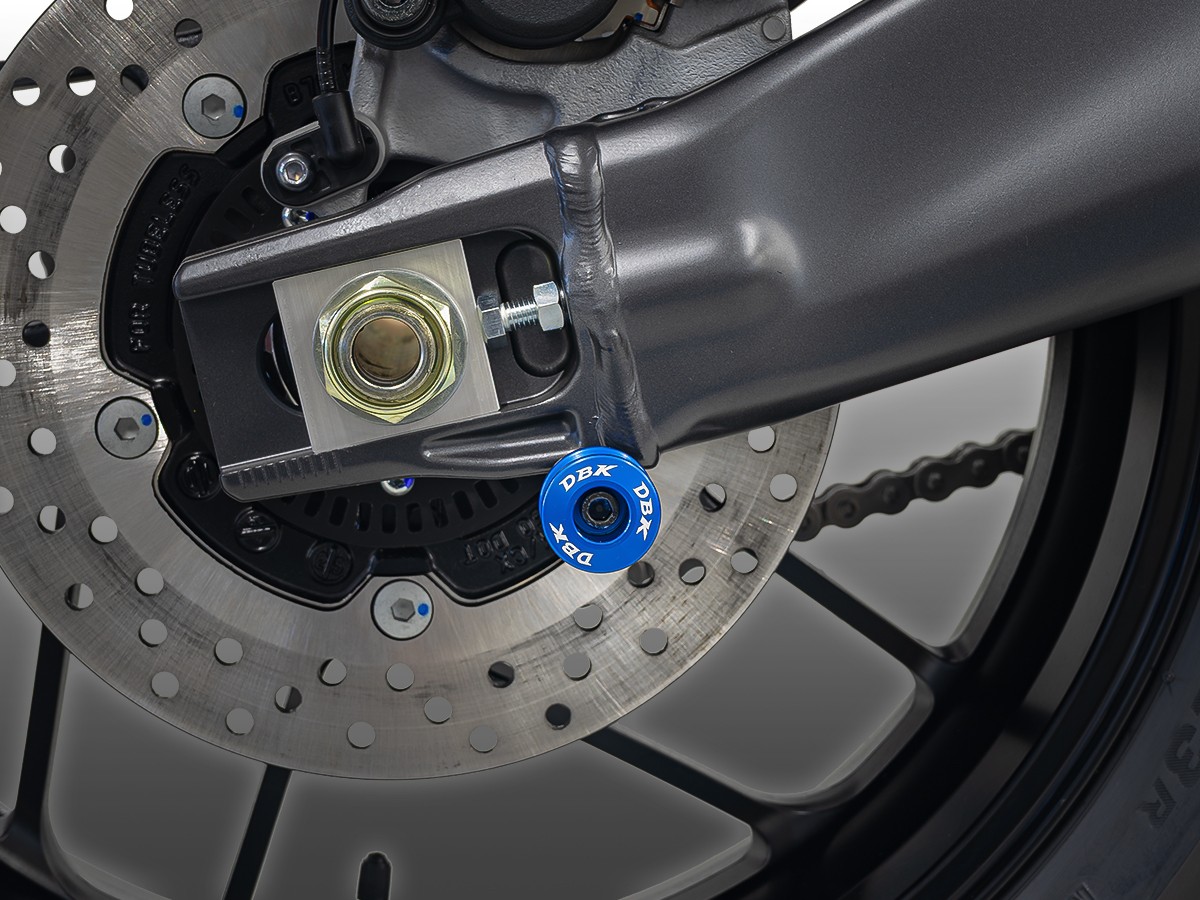

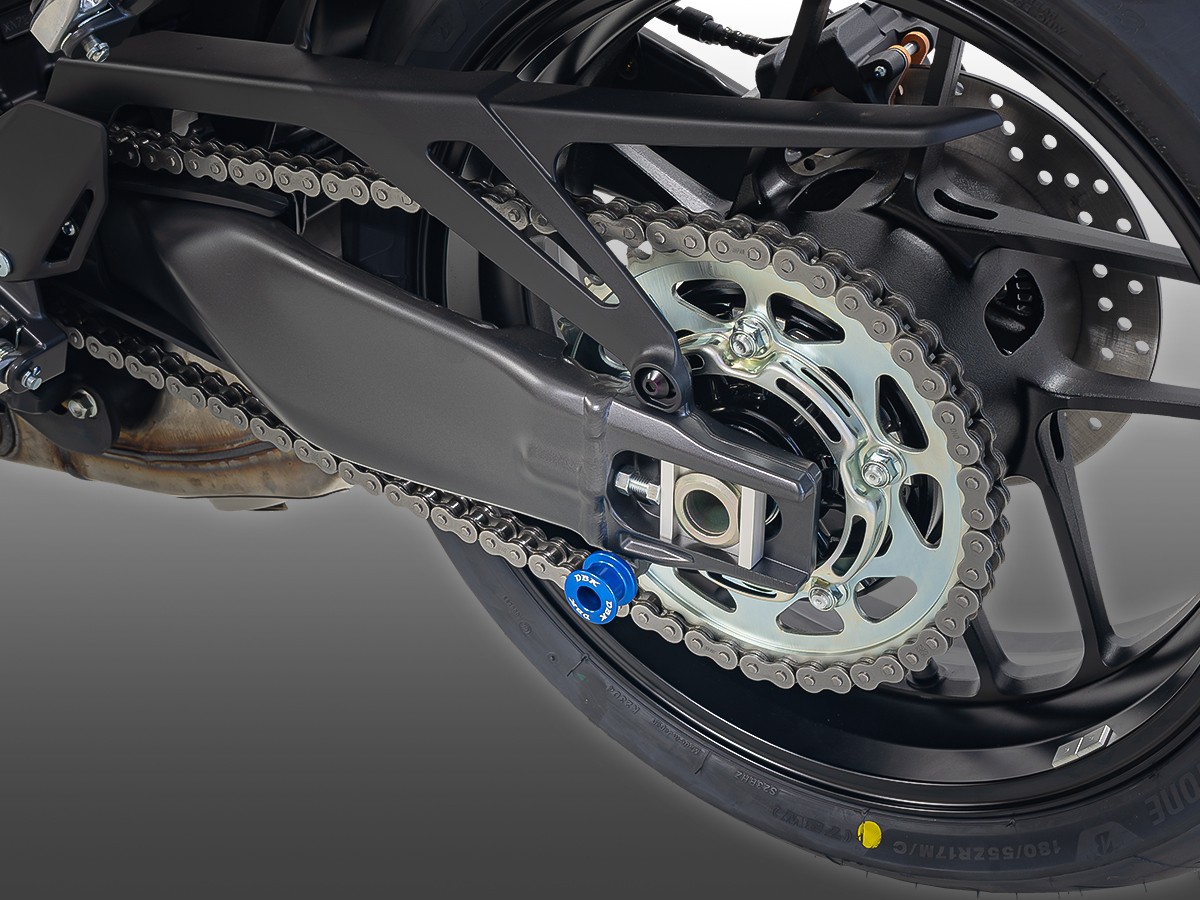

The DBK Aprilia/Triumph/Yamaha Swingarm Spools is more than just a lifting point; it is a precision-machined component designed to provide a secure interface between your motorcycle and a rear paddock stand. Whether you are performing a routine chain adjustment or storing your bike for the winter, these DBK Special Parts M6 spools offer the rigidity and finish quality that only Italian-made billet can provide.

Stability meets style.

The DBK Technical Edge

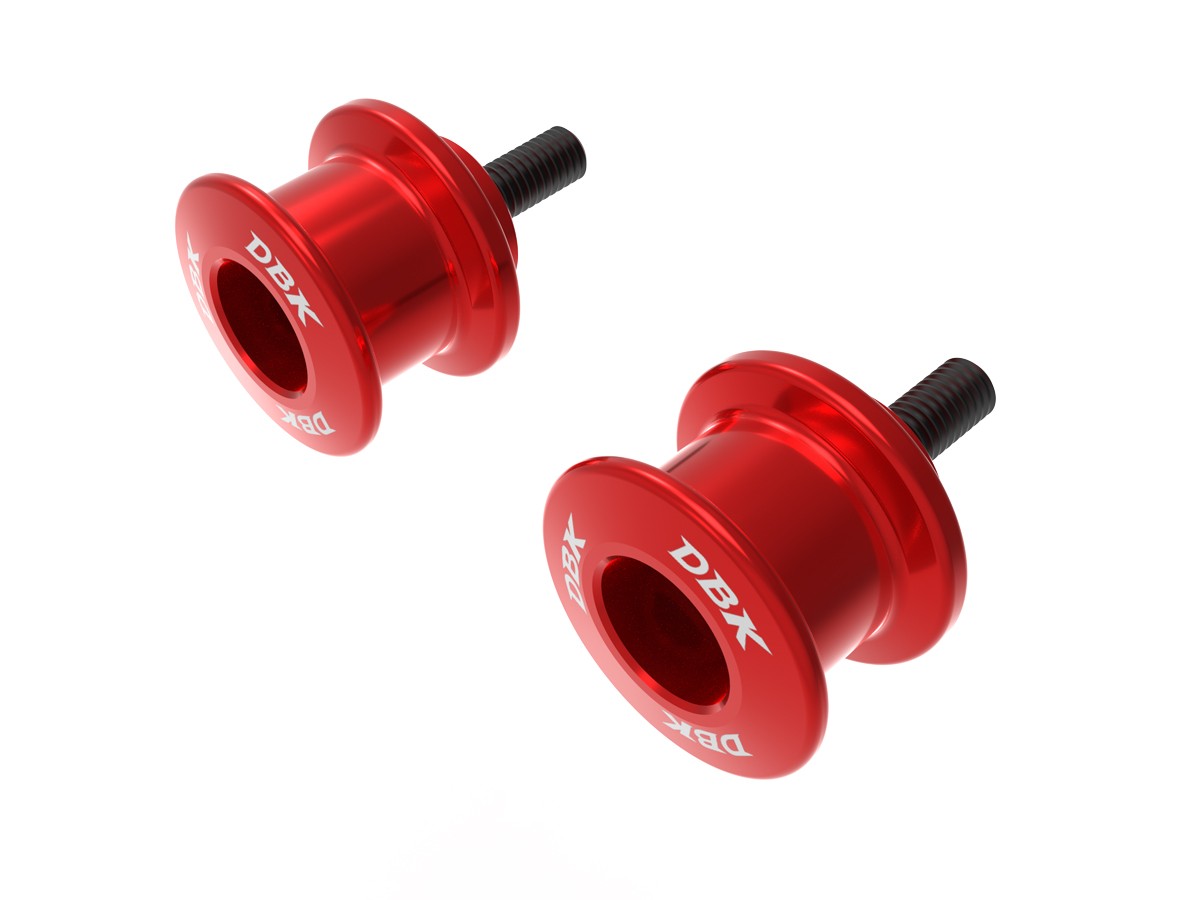

• CNC 3D Machined Billet: Unlike cheap universal plastic spools, the SCP07 is machined from a solid block of high-strength lightweight alloy using advanced 3D CNC technology. This ensures the spool won’t bend or snap under the weight of the bike.
• Deep-Groove Profile: The spool geometry features a deep central channel designed to “lock” into paddock stand hooks, preventing the bike from slipping during the lift.

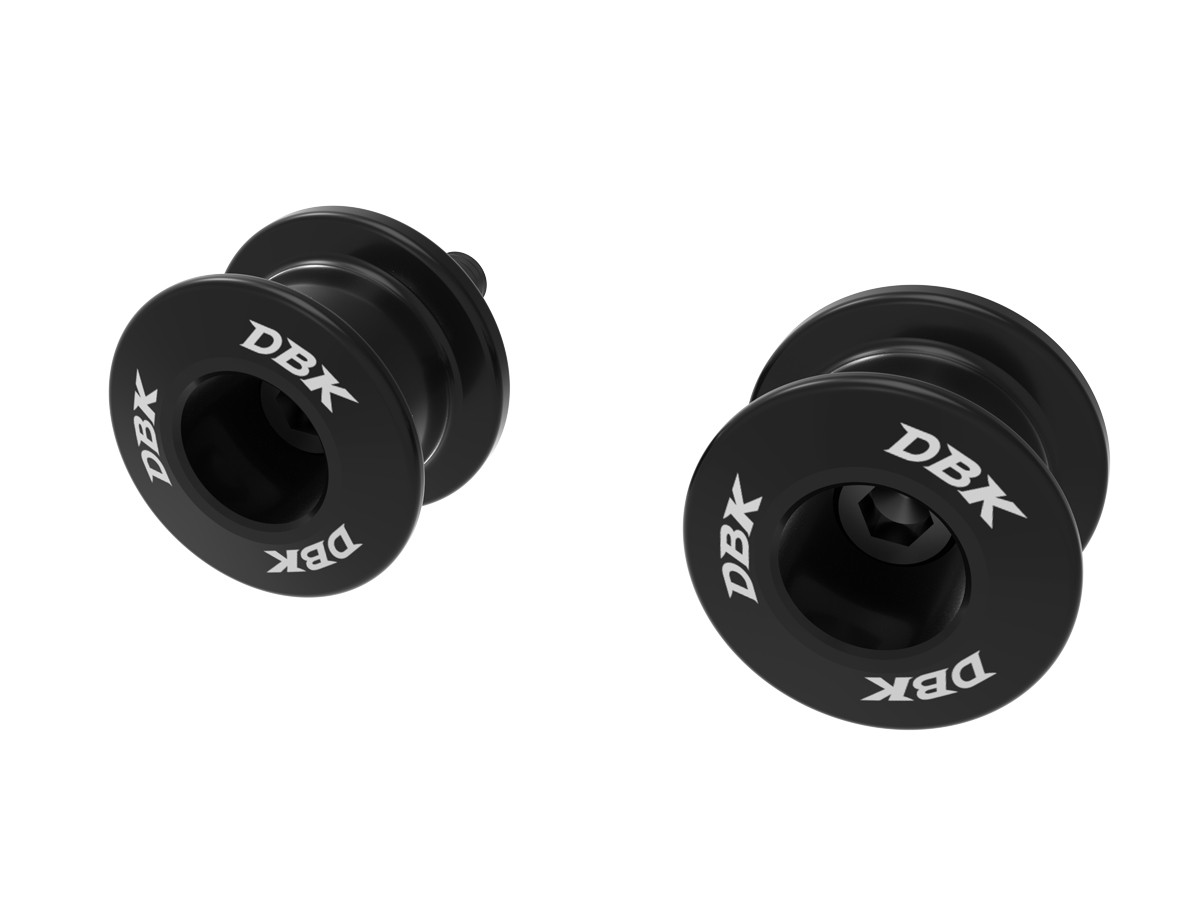

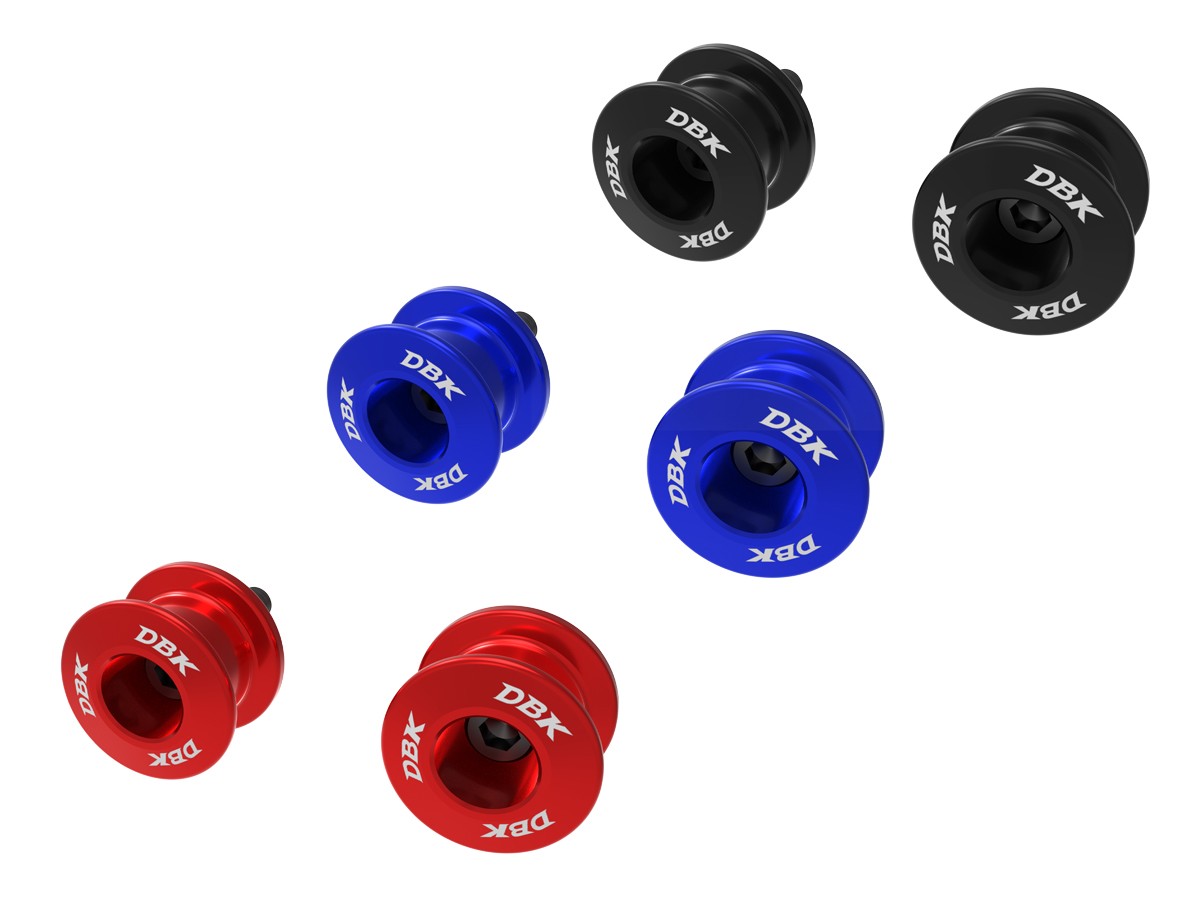

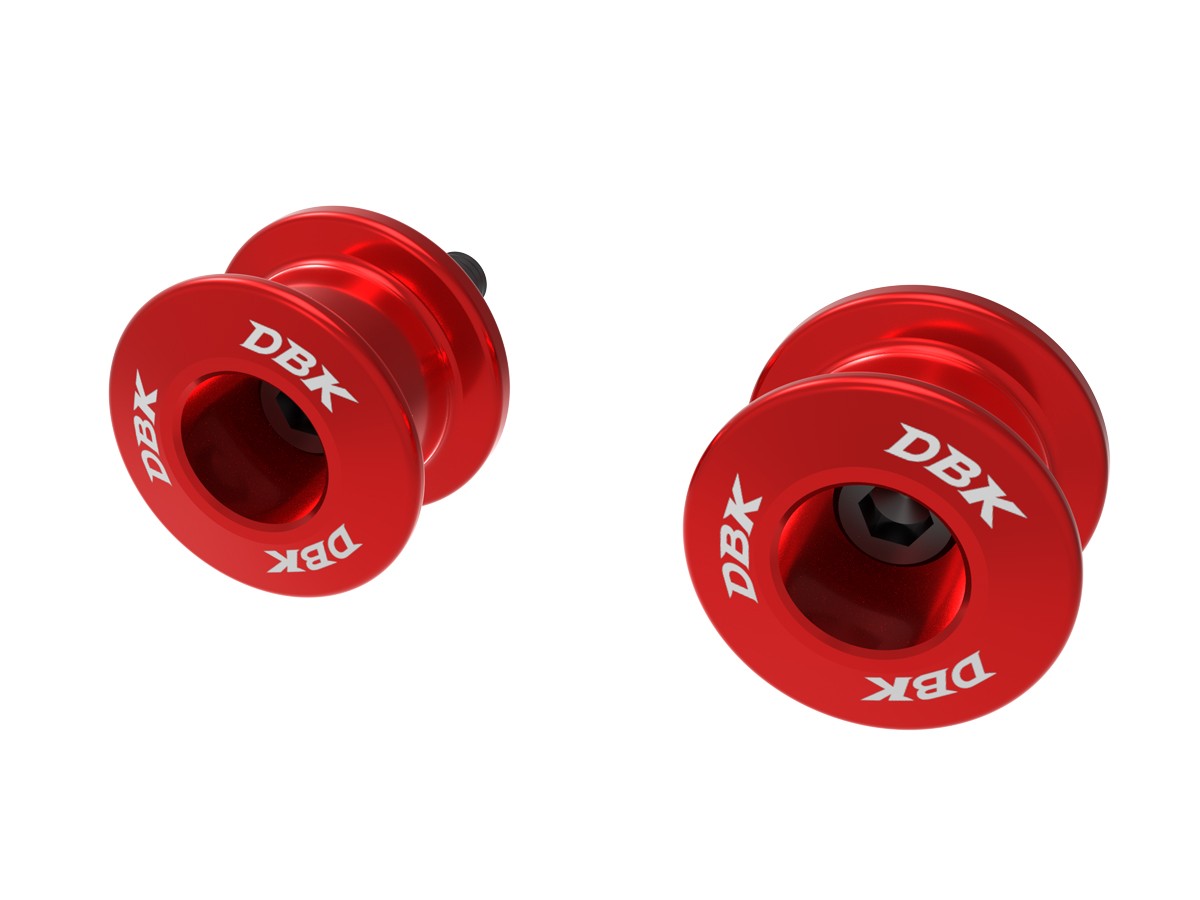

• Hard-Anodized Finish: Available in Black, Red, Gold, and Silver. The anodizing process creates a surface harder than the base aluminum, protecting the spool from the abrasive contact of stand hooks.
• Integrated Slide Protection: In the event of a low-side, these spools act as sacrificial sliders, potentially keeping the swingarm and rear axle from contacting the pavement.

📊 Comprehensive Fitment Guide (M6 Thread)

This set includes two spools and two M6 stainless steel bolts. It is a direct fit for the following models:

Tech Tip: Triumph models from 2011+ typically moved to an M8 thread. If your Triumph is a newer model, please verify your thread pitch before ordering the SCP07.

🛠️ Installation & Maintenance

1. Preparation: Ensure the swingarm mounting holes are clean and free of road grime or paint overspray.
2. Thread Lock: We strongly recommend applying a drop of Medium Strength (Blue) Threadlocker to the M6 bolts to prevent them from vibrating loose over time.
3. Torque Spec: Tighten the bolts to 8–10 Nm (6–7 ft-lbs). Over-tightening can damage the threads in the swingarm.
4. Cleaning: Simply wipe with a mild soap and water solution. Avoid harsh acids or industrial degreasers that can dull the anodized finish.

❓ FAQ: Product Support

Do I need a special stand for these?

No. These spools are universal to all “hook-style” rear paddock stands (e.g., Pit Bull, Woodcraft, or Vortex).

Will these fit the new Yamaha R9?

Yes. The R9 utilizes the standard Yamaha M6 mounting points, making the SCP07 a perfect “Day 1” upgrade.

Can these be used as frame sliders?

No. While they offer some protection to the rear of the bike, they are specifically designed for lifting. For frame protection, look at the DBK Billet Frame Slider series.

Give your machine the DBK Special Parts advantage.

Order your Aprilia/Triumph/Yamaha Swingarm Spools today and simplify your maintenance routine!

Installation instructions/SCP07
